Generate Upset Plot

Source: R/amr_upset.R
amr_upset.Rd

This function generates an upset plot showing summaries of phenotype results (assay distributions, phenotype category percentages, and/or predictive value for phenotype) for each combination of markers observed in the data.

Usage

amr_upset(
  binary_matrix = NULL,
  assay = "mic",
  min_set_size = 2,
  order = "value",
  geno_table,
  pheno_table,
  antibiotic = NULL,
  drug_class_list,
  geno_sample_col = NULL,
  pheno_sample_col = NULL,
  sir_col = NULL,
  ecoff_col = "ecoff",
  marker_col = "marker",
  plot_set_size = FALSE,
  plot_category = TRUE,
  print_category_counts = FALSE,
  print_set_size = FALSE,
  boxplot_col = "grey",
  SIR_col = c(S = "#3CAEA3", I = "#F6D55C", R = "#ED553B"),
  species = NULL,
  bp_site = NULL,
  guideline = "EUCAST 2025",
  bp_S = NULL,
  bp_R = NULL,
  ecoff_bp = NULL
)

Arguments

binary_matrix

A data frame containing the original binary matrix output from the get_binary_matrix() function. If not provided (or set to NULL), user must specify geno_table, pheno_table, antibiotic, drug_class_list and optionally geno_sample_col, pheno_sample_col, sir_col, ecoff_col, marker_col to pass to get_binary_matrix().

assay

A character string indicating whether to plot MIC or disk diffusion data. Must be one of:

  • "mic": plot MIC data stored in column mic

  • "disk": plot disk diffusion data stored in column disk

min_set_size

An integer specifying the minimum size for a gene set to be included in the analysis and plots. Default is 2. Only marker combinations with at least this number of occurrences are included in the plots.

order

A character string indicating the order of the combinations on the x-axis. Options are:

  • "": decreasing frequency of combinations

  • "genes": order by the number of genes in each combination

  • "value" (default): order by the median assay value (MIC or disk zone) for each combination

  • "ppv": order by the PPV estimated for each combination

geno_table

(Required if binary_matrix not provided) A data frame containing genotype data, formatted with import_amrfp(). Only used if binary_matrix not provided.

pheno_table

(Required if binary_matrix not provided) A data frame containing phenotype data, formatted with import_ast(). Only used if binary_matrix not provided.

antibiotic

Optional. Antibiotic name used to retrieve clinical breakpoints for annotation of the assay distribution plot.

drug_class_list

(Required if binary_matrix not provided) A character vector of drug classes to filter genotype data for markers related to the specified antibiotic. Markers in geno_table will be filtered based on whether their drug_class matches any value in this list. Only used if binary_matrix not provided.

geno_sample_col

A character string (optional) specifying the column name in geno_table containing sample identifiers. Defaults to NULL, in which case it is assumed the first column contains identifiers. Only used if binary_matrix not provided.

pheno_sample_col

A character string (optional) specifying the column name in pheno_table containing sample identifiers. Defaults to NULL, in which case it is assumed the first column contains identifiers. Only used if binary_matrix not provided.

sir_col

A character string specifying the column name in pheno_table that contains the resistance interpretation (SIR) data. The values should be "S", "I", "R" or otherwise interpretable by AMR::as.sir(). If not provided, the first column prefixed with "phenotype*" will be used if present, otherwise an error is thrown. Only used if binary_matrix not provided.

ecoff_col

A character string specifying the column name in pheno_table that contains resistance interpretations (SIR) made against the ECOFF rather than a clinical breakpoint. The values should be "S", "I", "R" or otherwise interpretable by AMR::as.sir(). Default ecoff. Set to NULL if not available. Only used if binary_matrix not provided.

marker_col

A character string specifying the column name in geno_table containing the marker identifiers. Default "marker". Only used if binary_matrix not provided.

plot_set_size

Logical indicating whether to include a bar plot showing the set size (i.e., number of times each combination of markers is observed). Default is FALSE.

plot_category

Logical indicating whether to include a stacked bar plot showing, for each marker combination, the proportion of samples with each phenotype classification (specified by the pheno column in the input file). Default is TRUE.

print_category_counts

Logical indicating whether, if plot_category=TRUE, to print the number of strains in each resistance category for each marker combination in the plot. Default is FALSE.

print_set_size

Logical indicating whether, if plot_set_size=TRUE, to print the number of strains with each marker combination on the plot. Default is FALSE.

boxplot_col

Colour for lines of the box plots summarising the MIC distribution for each marker combination. Default is "grey".

SIR_col

A named vector of colours for the percentage bar plot. The names should be the phenotype categories (e.g., "R", "I", "S"), and the values should be valid color names or hexadecimal color codes. Default values are those used in the AMR package AMR::scale_colour_sir().

species

Optional. Species name used for breakpoint lookup.

bp_site

Optional. Breakpoint site (e.g. "Non-meningitis") used when retrieving clinical breakpoints.

guideline

Guideline used for breakpoint lookup. Default is "EUCAST 2025".

bp_S

(optional) S breakpoint to add to plot (numerical).

bp_R

(optional) R breakpoint to add to plot (numerical).

ecoff_bp

(optional) ECOFF breakpoint to add to plot (numerical).

Value

A list containing the following elements:

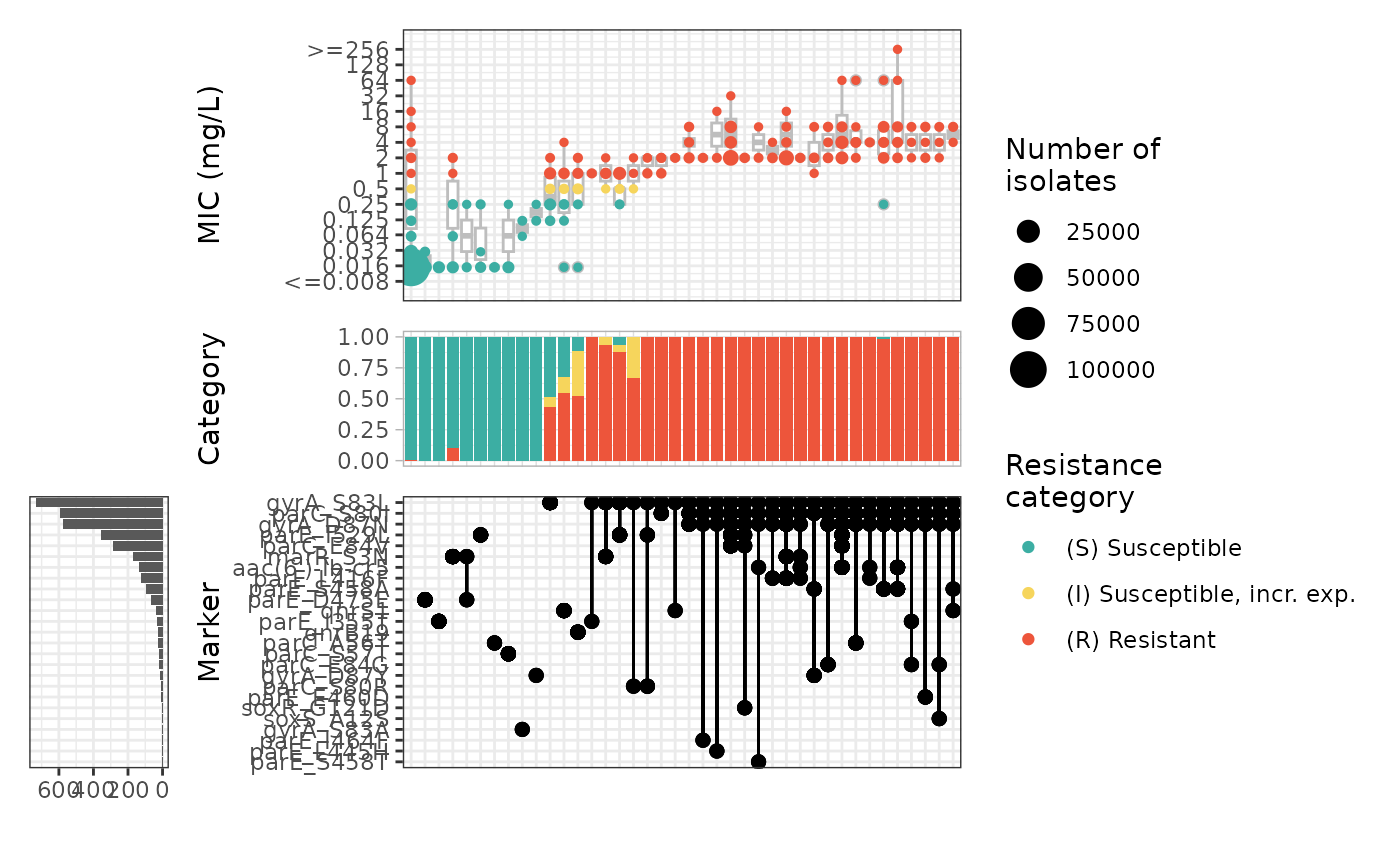

  • plot: A grid of plots displaying: (i) grid showing the marker combinations observed, MIC distribution per marker combination, frequency per marker and (optionally) phenotype classification and/or number of samples for each marker combination.

  • binary_matrix: A copy of the genotype-phenotype binary matrix (either provided as input or generated by the function)

  • summary: A data frame summarizing each marker combination observed, including median MIC (and interquartile range), number of resistant isolates, and positive predictive value for resistance.

Examples

if (FALSE) { # \dontrun{
ecoli_geno <- import_amrfp(ecoli_geno_raw, "Name")

# Generate binary matrix
binary_matrix <- get_binary_matrix(
  geno_table = ecoli_geno,
  pheno_table = ecoli_ast,
  antibiotic = "Ciprofloxacin",
  drug_class_list = c("Quinolones"),
  sir_col = "pheno_clsi",
  keep_assay_values = TRUE,
  keep_assay_values_from = "mic"
)

# Run upset plot analysis using this binary_matrix
amr_upset(binary_matrix, assay = "mic")

# Alternatively, generate binary matrix and run ppv() in one step
amr_upset(
  assay = "mic",
  geno_table = ecoli_geno,
  pheno_table = ecoli_ast,
  antibiotic = "Ciprofloxacin",
  drug_class_list = c("Quinolones"),
  sir_col = "pheno_clsi"
)
} # }
